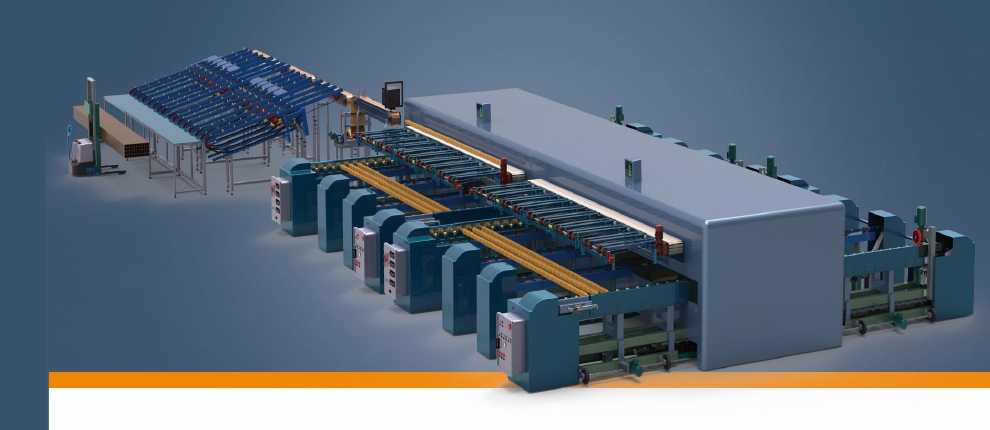

YM Series is the latest technology for online wood-effect sublimation. It is engineered for aluminium profile extrusion factories and high-volume job coaters seeking greater output with less effort.
The process transfers pigmented ink from a dedicated paper or film into a powder-coated substrate at the correct temperature and pressure.
Our fully automatic continuous process keeps the vacuum inside the transfer-film bag until the product leaves the oven, supporting stable results and consistent colour distribution.

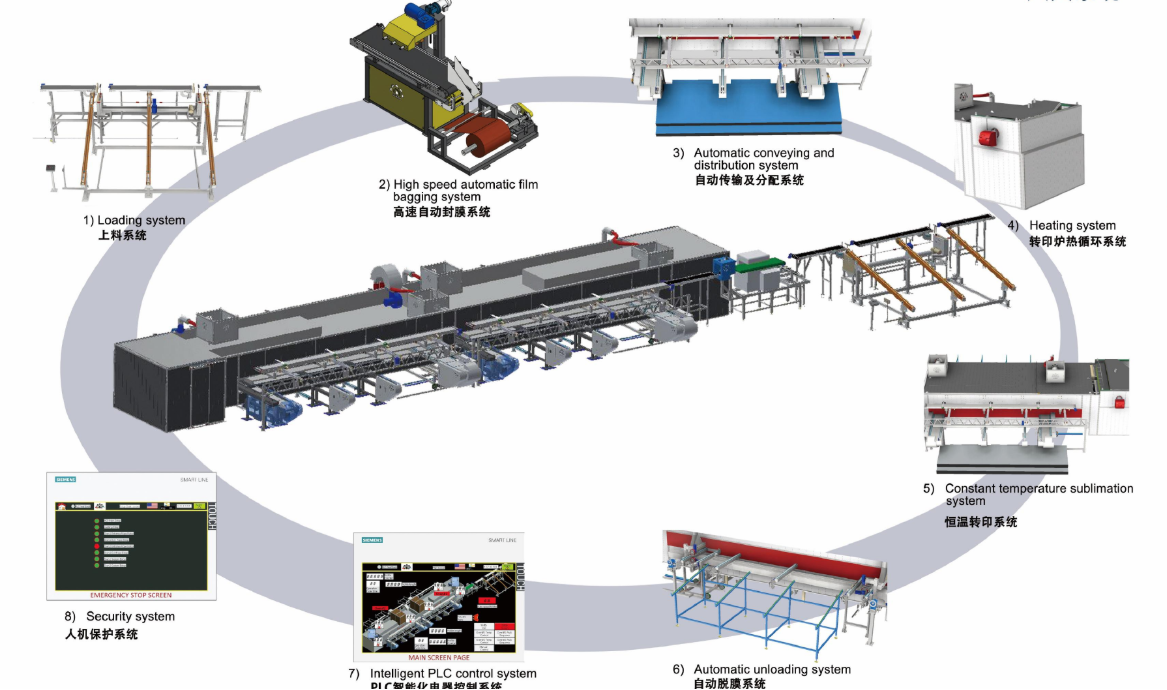

Profile loading and preparation before the continuous process.
Automatic bagging before the transfer stage.
Conveying and distribution through the line.
Controlled hot-air heating for transfer.
Stable temperature for uniform colour results.
Automatic unloading after the oven.
Line monitoring and speed control from one system.
Fault records and alarms for safe operation.
Four continuous-line configurations scale from compact sublimation work to high-volume profile production.

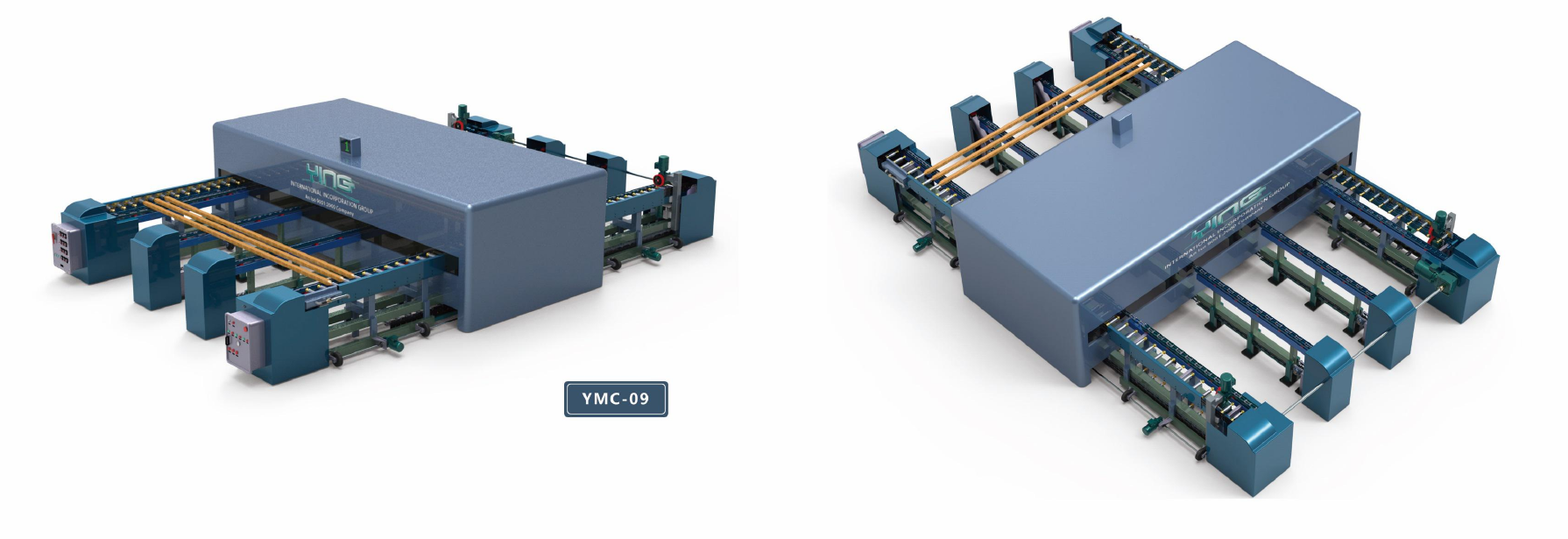

Compact continuous sublimation unit
A compact entry configuration for aluminium profile production where floor space and team size are limited.

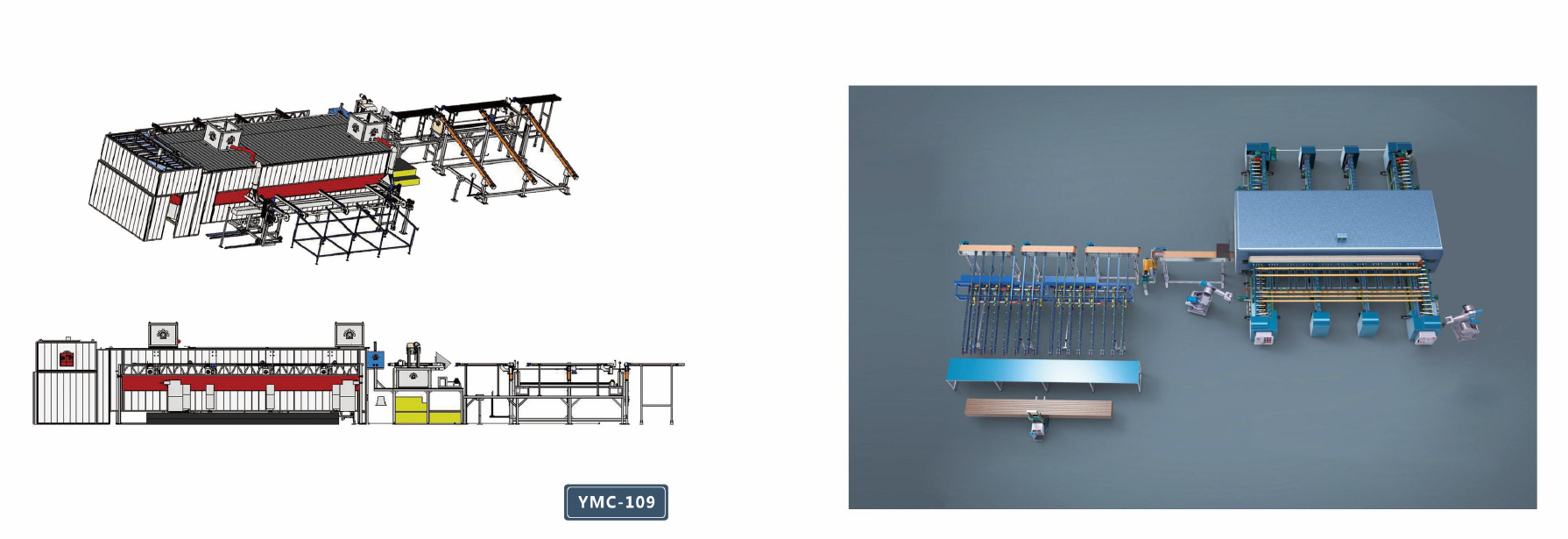

Single continuous sublimation unit
A single-unit line for growing output, with automatic bagging, conveying and controlled sublimation.

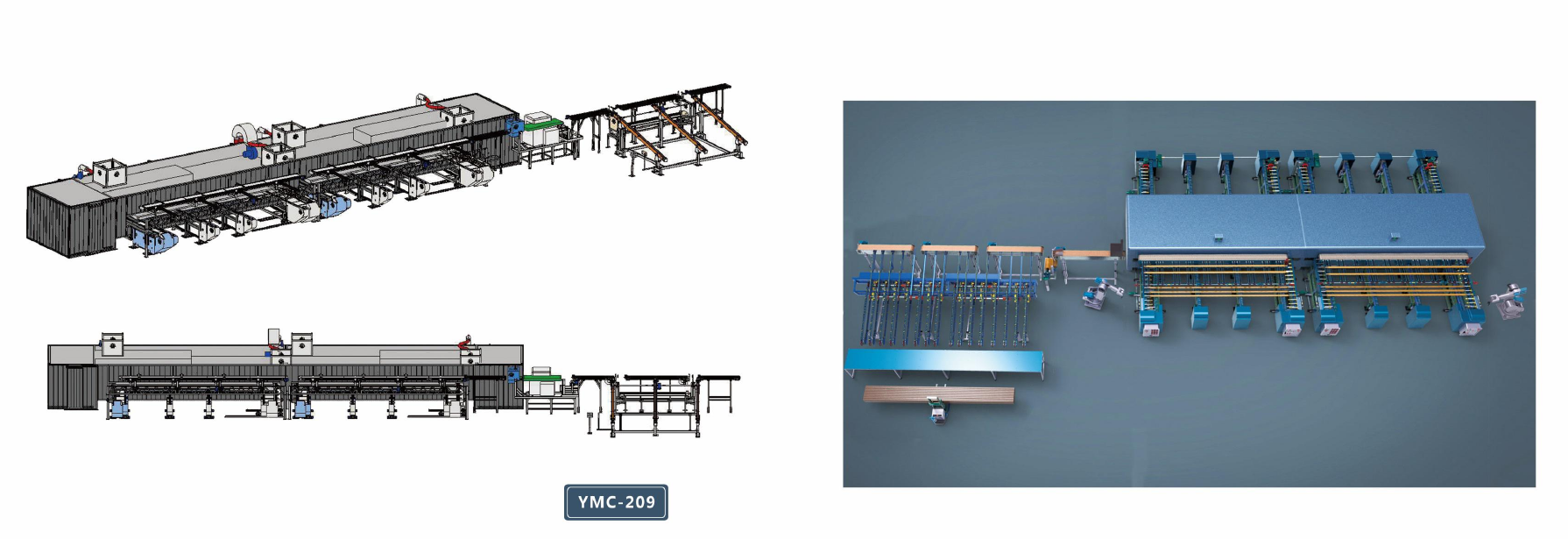

Two continuous sublimation units
The high-volume configuration for profile extrusion factories, delivering up to 360 bags per hour.

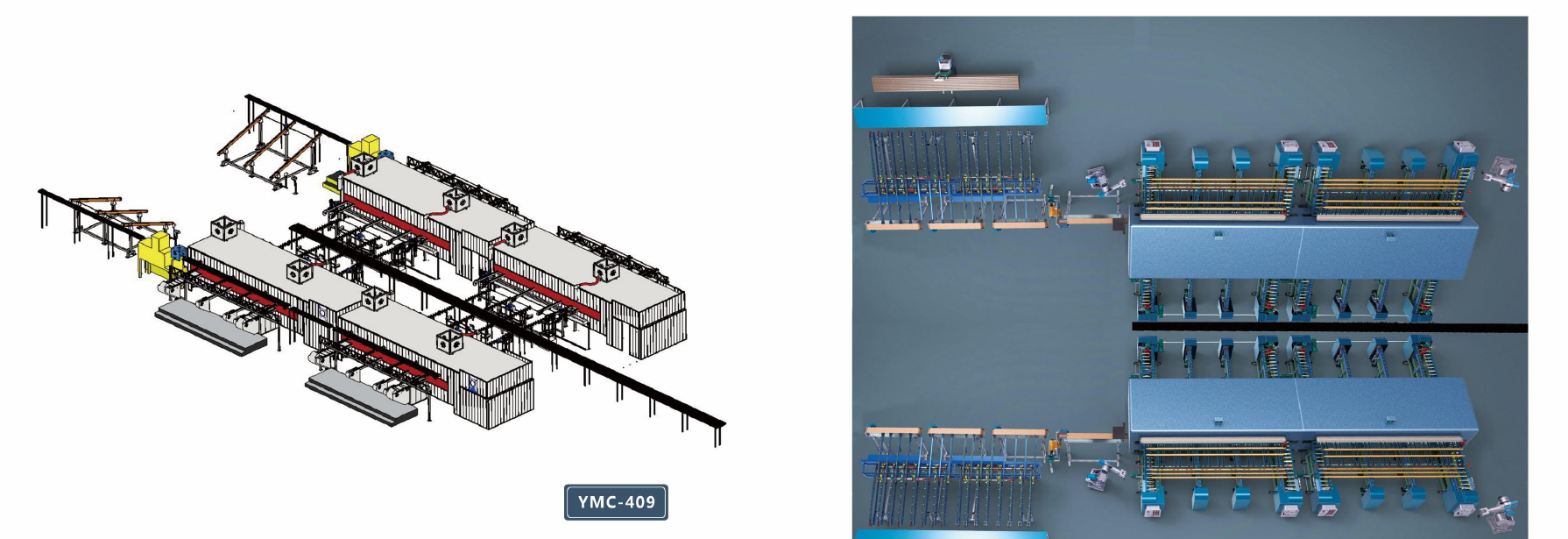

Four continuous sublimation units
The largest line arrangement for maximum throughput, with four coordinated sublimation units.
10 m × 9 m × 3 m
180 bags/hour
L 7 m × W 250 mm × H 150 mm
2–3
30 kW
20 m × 9 m × 3 m
180 bags/hour
L 7 m × W 250 mm × H 150 mm
3–5
60 kW
30 m × 9 m × 3 m
360 bags/hour
L 7 m × W 250 mm × H 150 mm
5–8
85 kW
30 m × 20 m × 3 m
720 bags/hour
L 7 m × W 250 mm × H 150 mm
11
170 kW
YM-2 reaches up to 360 bags per hour for continuous profile production.
Suitable for profiles of different shapes and sizes up to 7 m.
Automatic loading, bagging, conveying and adjustable speed are coordinated by an intelligent PLC system.
Hot-air circulation and intelligent temperature control support uniform colour results.
The required team scales with the selected configuration and profile weight.
The continuous process is designed for efficient heating and transfer.
Electrical, air and burner components are sourced from recognised international suppliers.
A high-standard safety system records faults and provides alarms for faster response.
