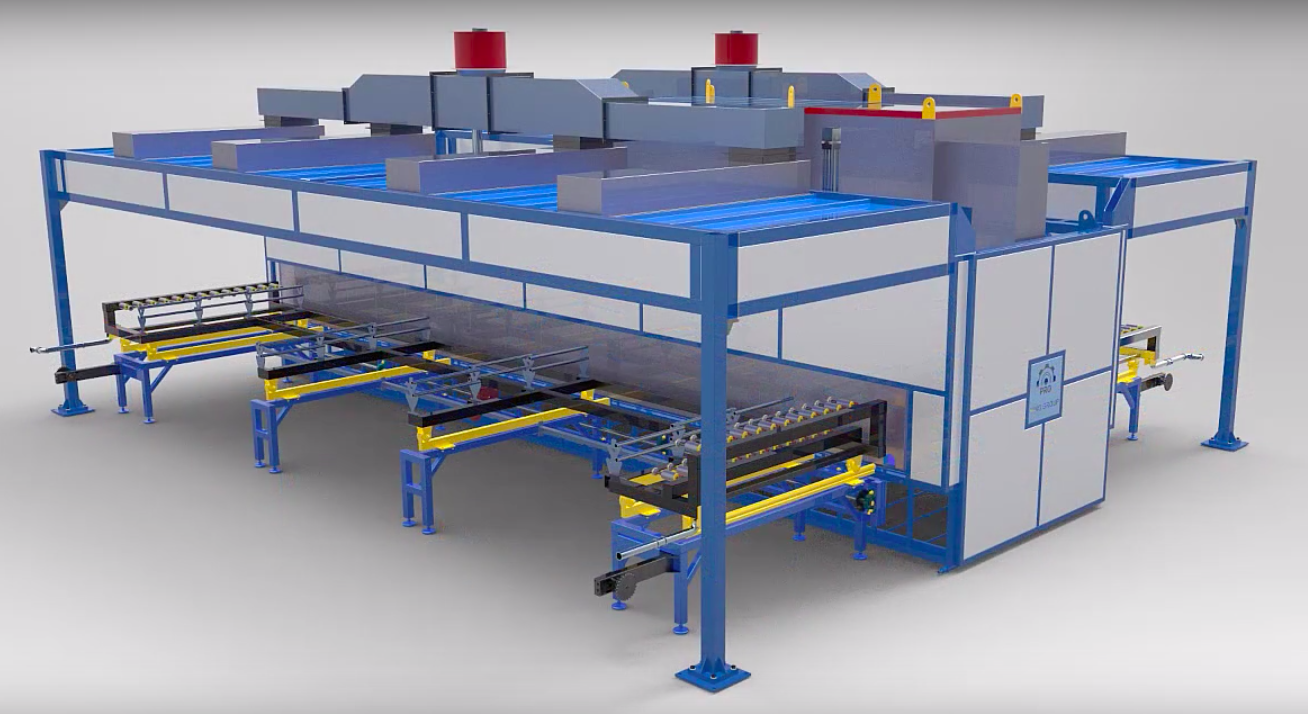

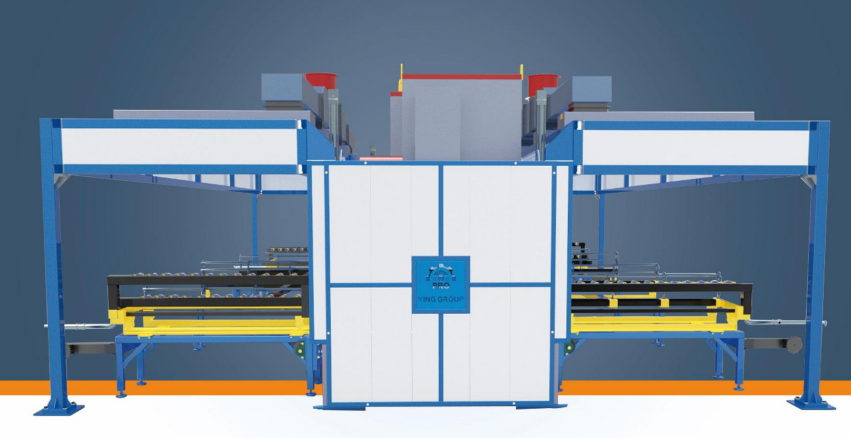

US-2 is a compact, multi-function system for heat-transfer decoration on aluminium profiles, steel profiles, sheets, panels and doors.
It is designed for job coaters and workshops where floor space is limited.
Large extrusion plants can also use US-2 alongside a YM-2 line for smaller orders, without interrupting main production.
Four working configurations adapt the compact US-2 system to profiles, sheets and steel doors.

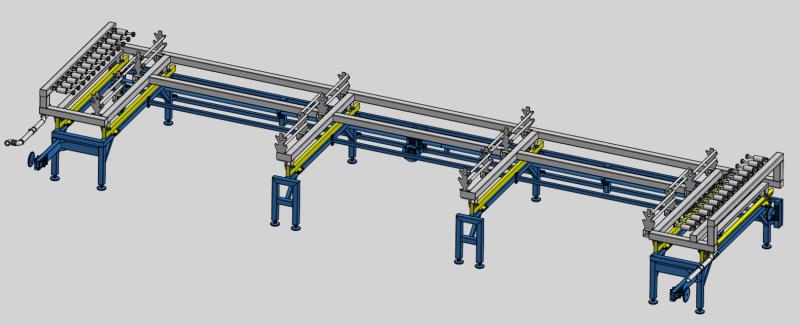

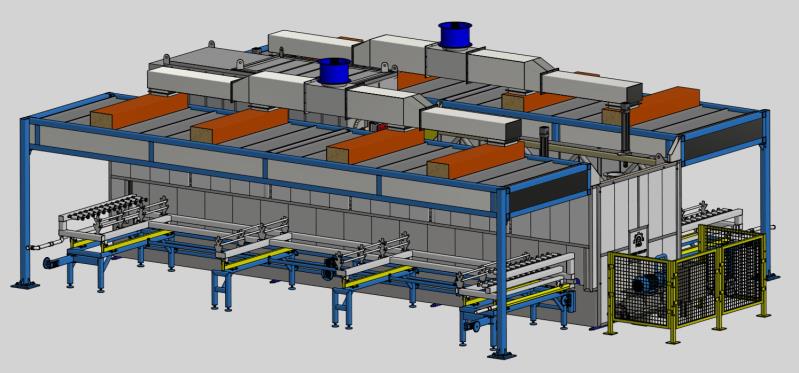

For aluminium profile
Membrane working table configuration for aluminium profiles, frames and smaller batch orders.

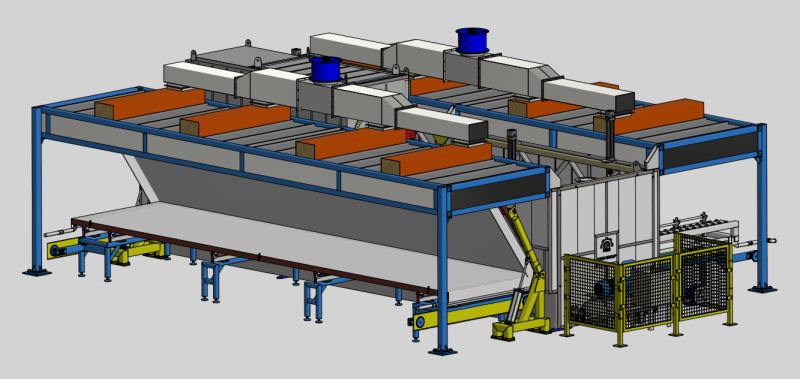

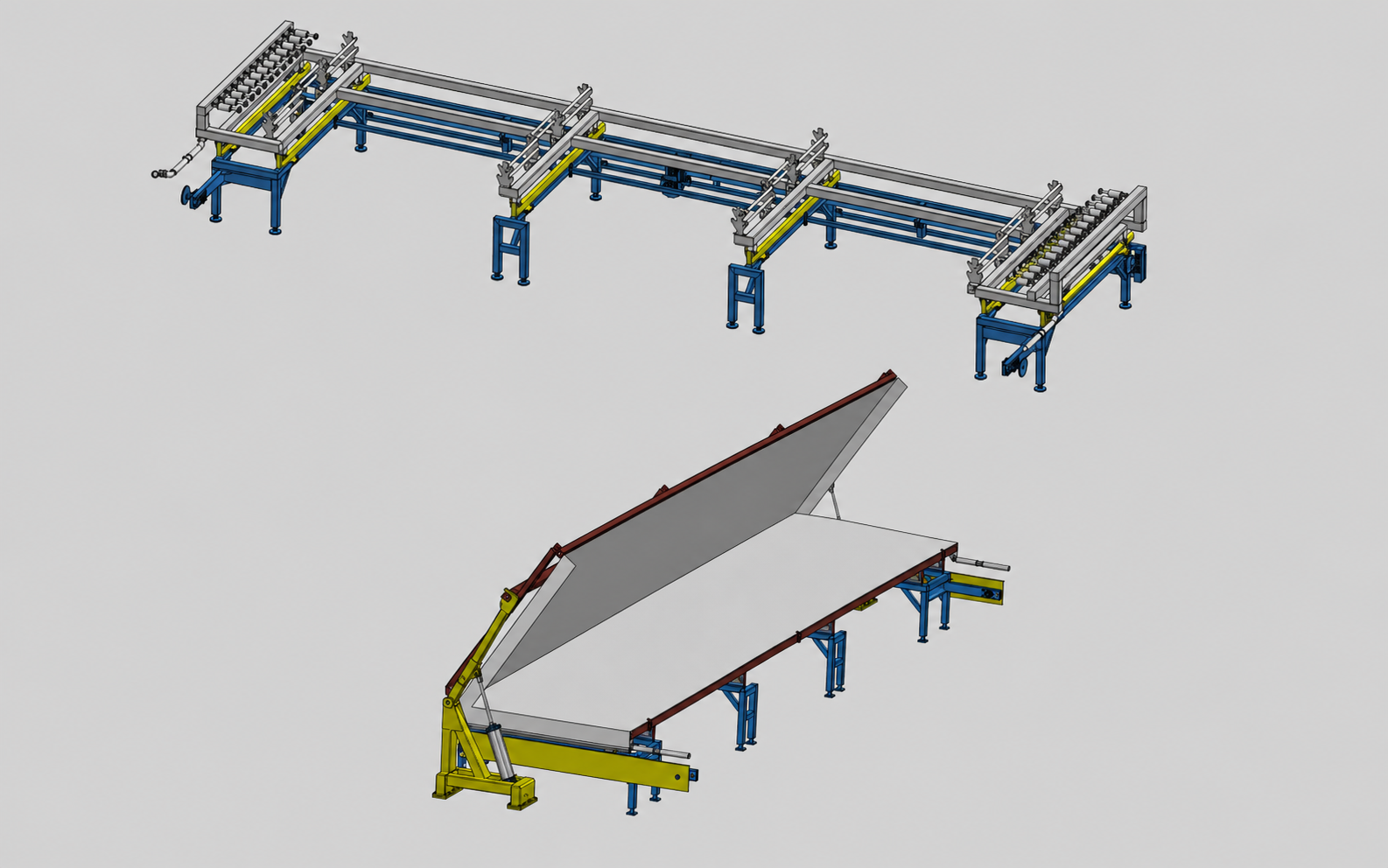

For profile and sheet
Flexible profile and sheet configuration with interchangeable working tables for mixed production.

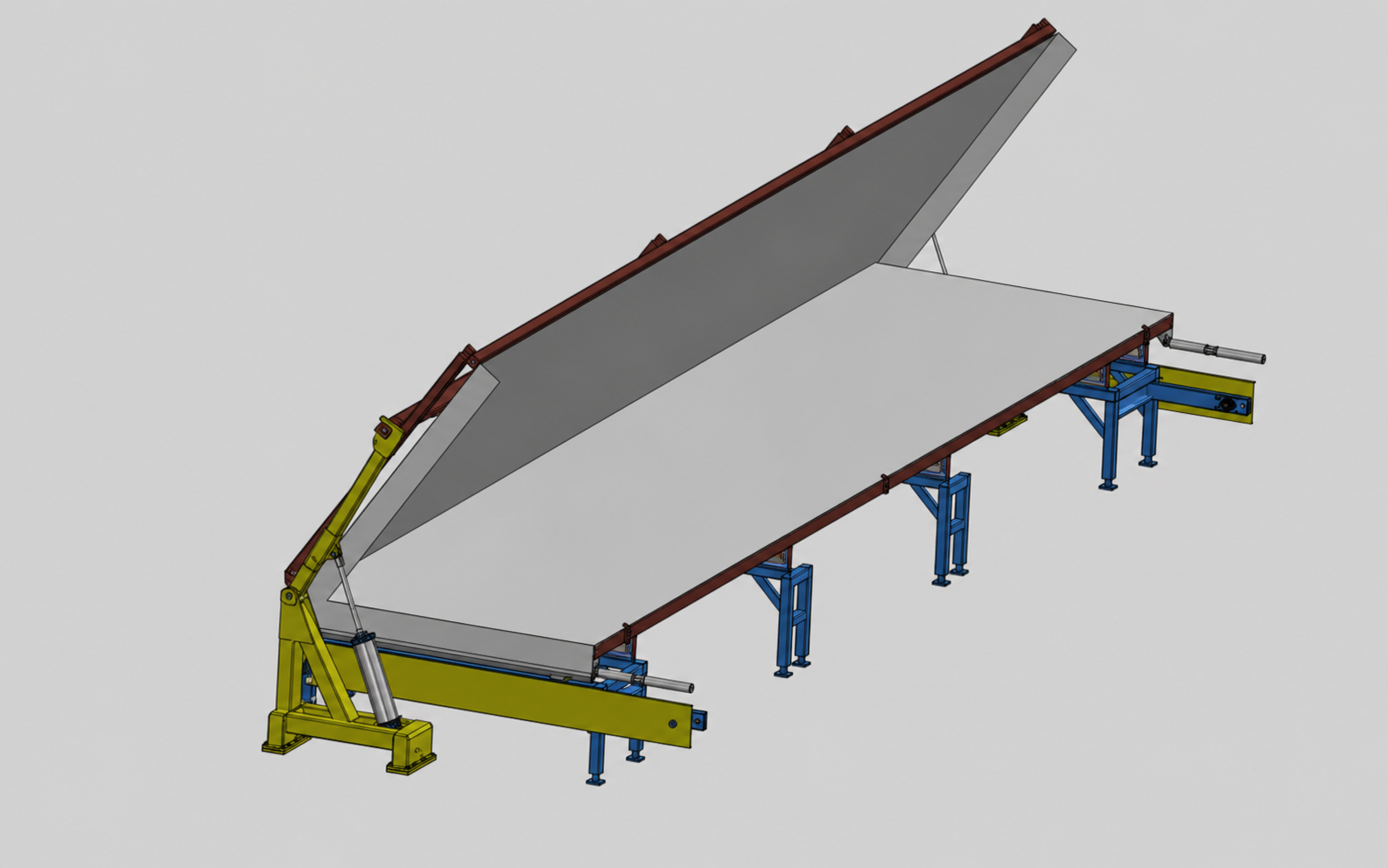

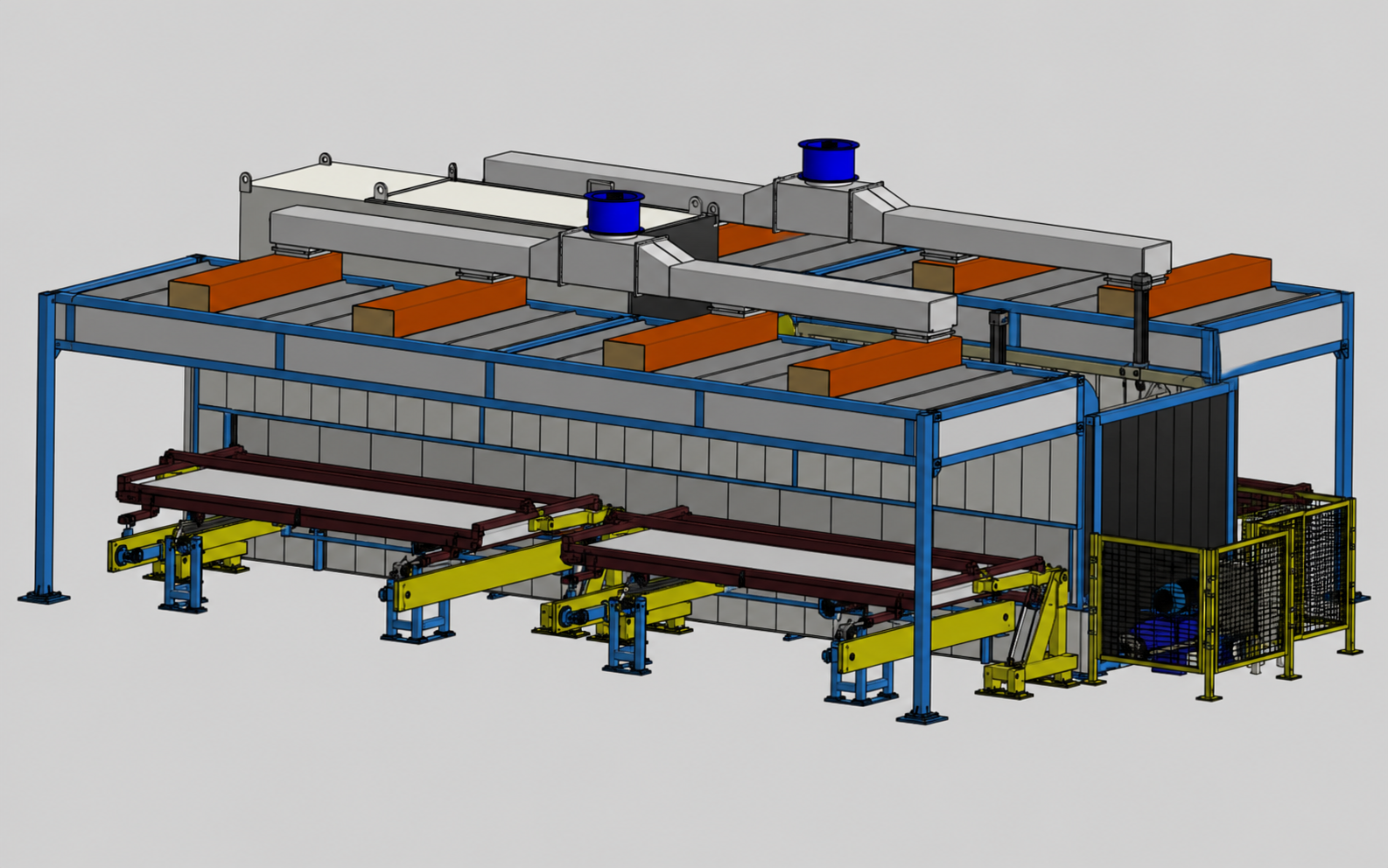

For sheet
Lifting working table configuration for sheet decoration and blanket-assisted transfer.

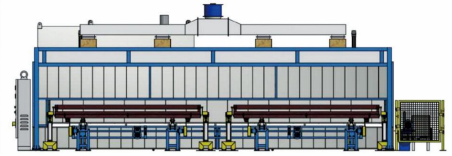

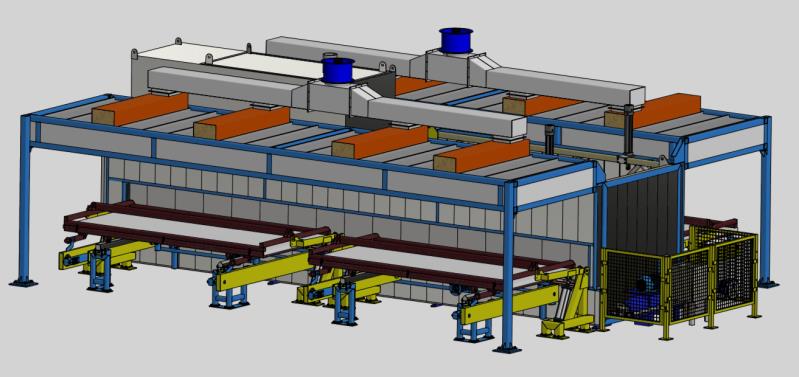

For steel door
Steel door configuration for larger panels and framed door production.
Aluminium profile, steel door, frame or panel
Maximum width 1.2 m; length 6.5 m; height 200 mm
10 m × 7 m
250 °C
8–20 minutes
50 Hz, 380 V
19 kWh
336 Mcal/hr
60 kPa minimum
6 bar
1 qm/hr
A compact 10 m × 7 m footprint suits smaller workshops and batch production.
The machine can be configured for different product shapes and sizes.
Precise temperature control and uniform heat distribution support stable results.
SS304 stainless-steel panels and recognised electrical, air and heating components.
Touch-screen and PLC control coordinate the operating sequence.
Compact heating and automated handling help reduce operating effort.
