PF Series is a high-capacity horizontal powder coating line for aluminium profiles and a wide range of steel products.

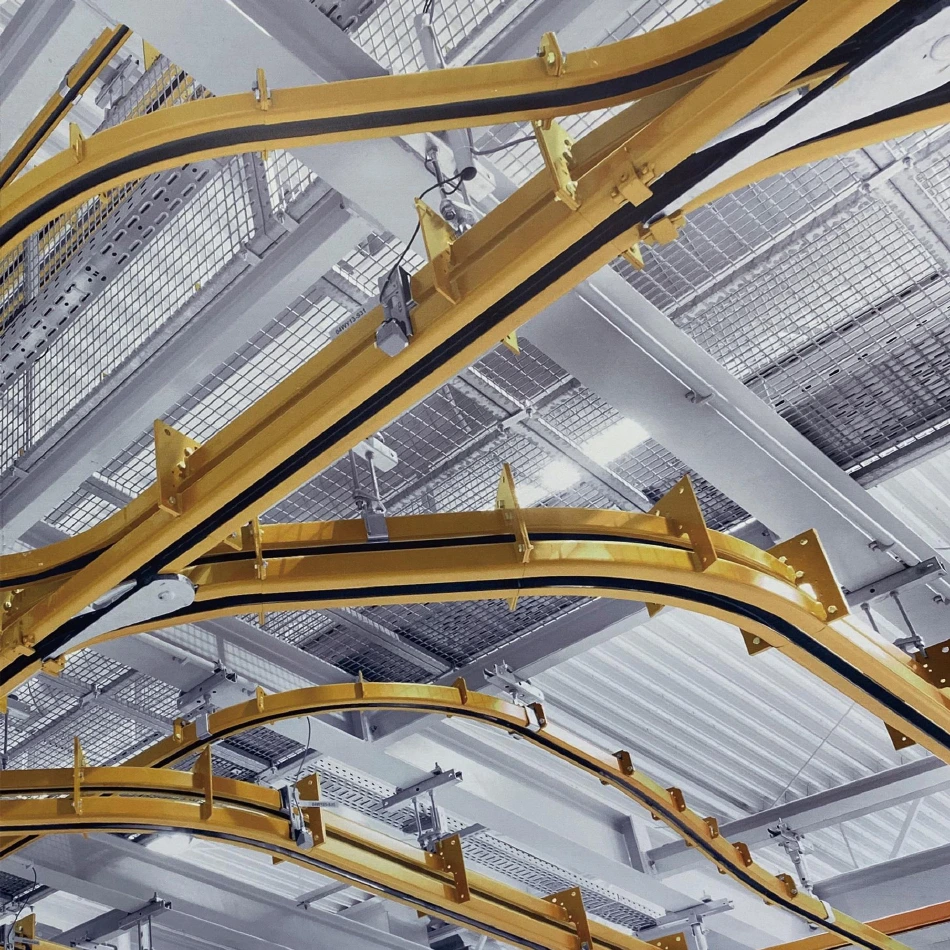

The Power & Free Conveyor creates a highly automated, integrated production flow. It is designed to keep coating work moving at high speed while making efficient use of the available factory space.
Loading and unloading take place beneath the stable conveyor, giving operators straightforward access to the workpieces throughout the line.
Two routing arrangements adapt the line to available factory space and material flow.

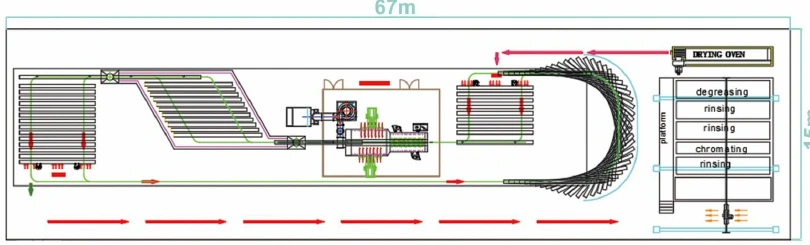

FIFO arrangement
A first-in, first-out route for aluminium profiles and a clear production sequence.

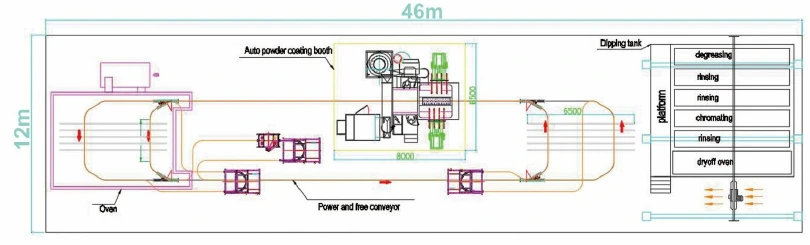

FILO arrangement
A first-in, last-out route that keeps the Power & Free Conveyor compact within the available footprint.
Aluminium profiles and various steel products
36 m × 12 m
5 metres per minute
20 tons per day
250 kg per carrier, or customized
180–220 °C, adjustable with automatic control
4–8 automatic guns on reciprocators, with two manual touch-up stations
Diesel oil, LPG or gas, with heat exchanger
The production route combines handling, surface preparation, powder application and controlled curing.
Optional configuration for surface preparation.
Optional configuration before powder application.

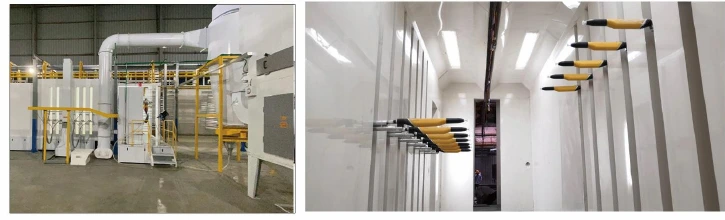

Automatic application with manual touch-up provision.

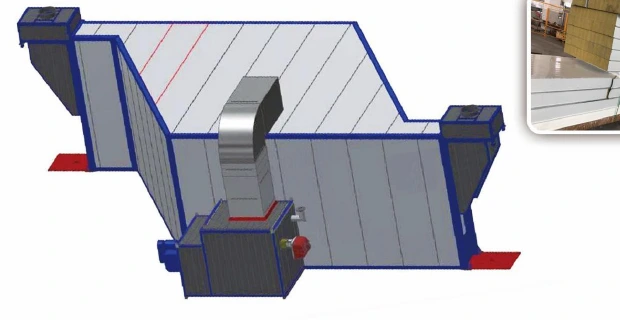

Controlled heating for the curing stage.

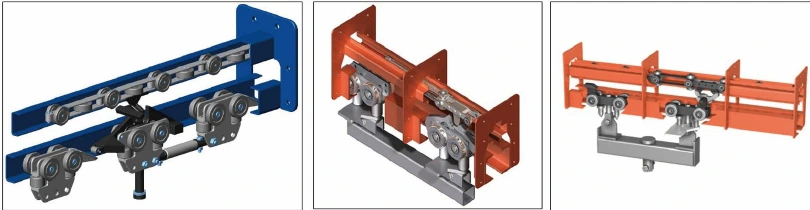

Integrated workpiece handling through the line.

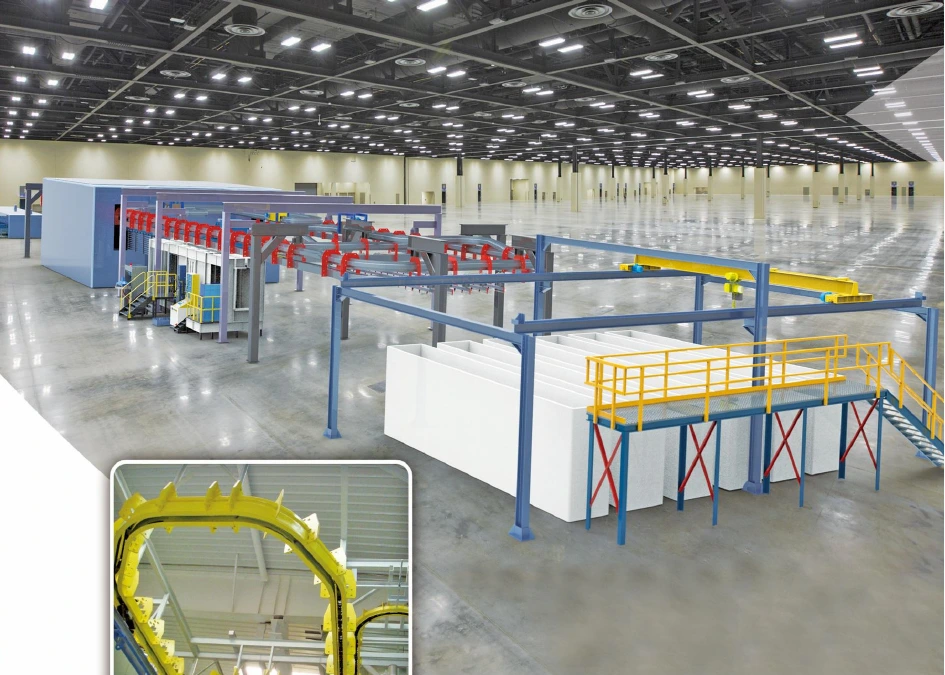

A horizontal system designed for a practical production flow and high daily output.
Power & Free Conveyor routing helps organize the coating process within a limited footprint.
Stable overhead conveying keeps loading and unloading accessible for operators below.
A high-efficiency powder booth can be configured with powder recycling and a quick color-change center.
The PF Series system is specified with CE-certified equipment.
