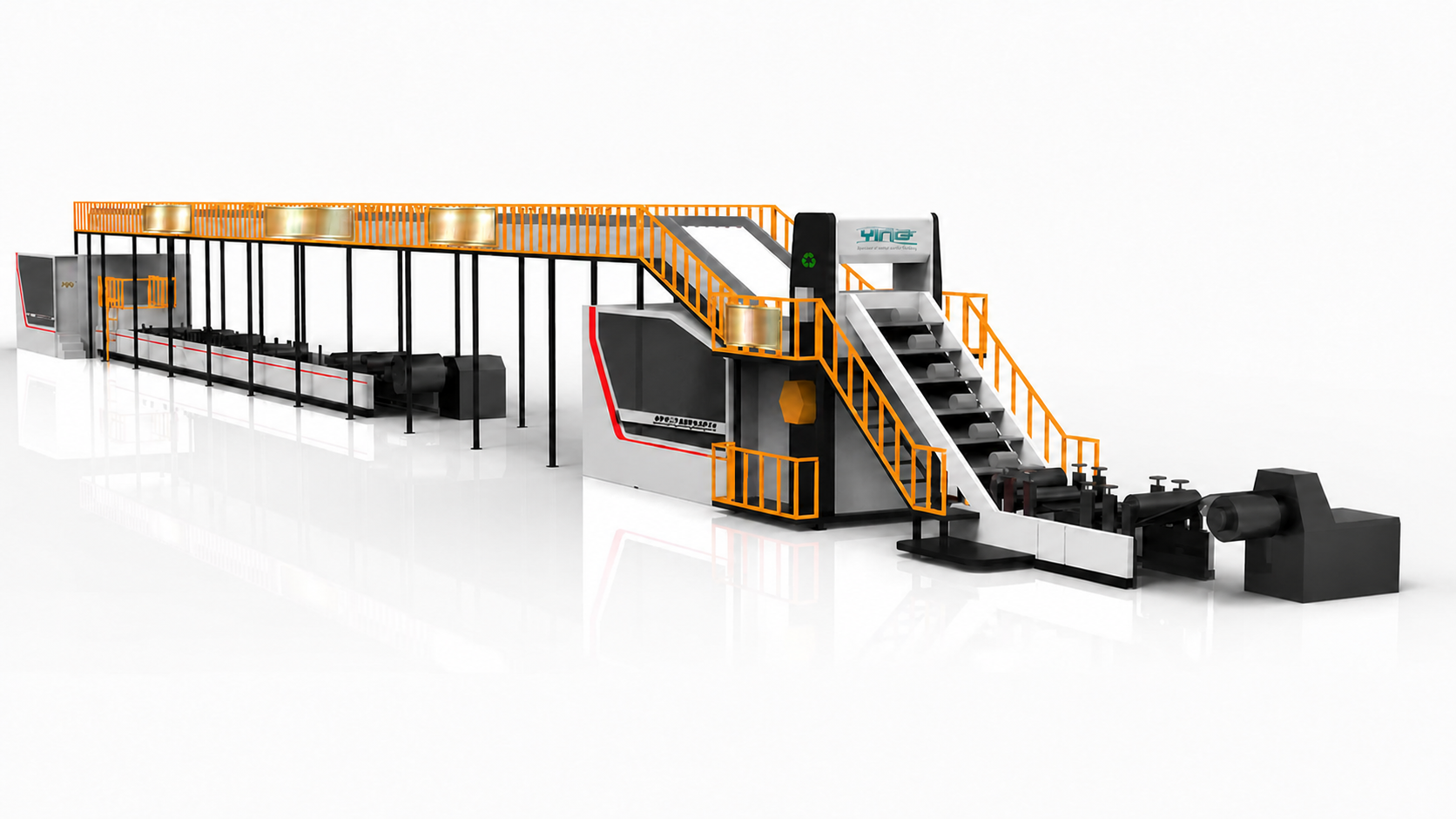

YH Series is a continuous powder coating and decorating line for aluminium or steel coil. Raw material enters as coil and leaves as a finished, decorated sheet.
A modern surface pre-treatment process and a 60–80 μm powder layer prepare the coil for sublimation decoration, opening applications such as doors, building panels and ceilings.
The line combines powder coating, curing, sublimation, cooling and film covering in one coordinated production flow.
Decoiler and coil connection equipment.
Surface preparation, drying and cooling.

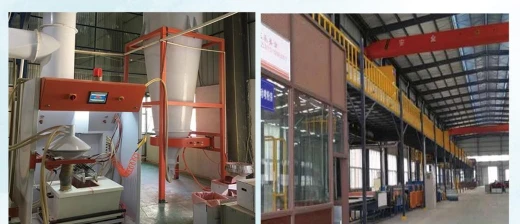

Automatic powder application for a consistent layer.
Powder curing oven and controlled heating system.
Continuous transfer decoration for wood, marble or custom effects.

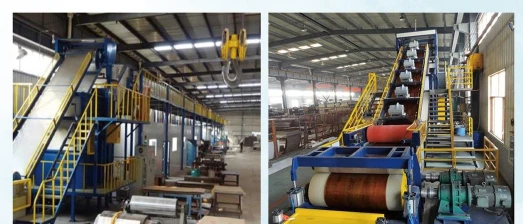

Cooling, film covering and re-coiler.
Tension control, deviation correction and hydraulic station.
Monitoring room and centre control system.

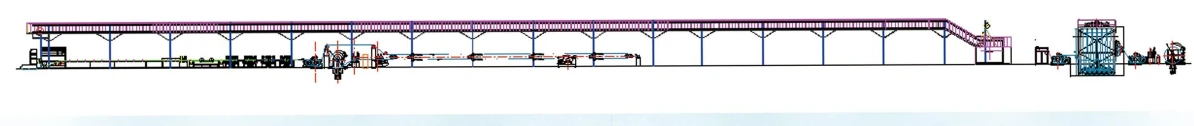

150 m × 4 m × 8.5 m
120 gsm galvanized steel; stainless steel and aluminium with adjusted process settings
0.6–1.6 mm thickness; 800–1250 mm width; up to 15 t coil weight
10 m/min
750 m²/h
Natural gas and electricity; four curing systems, one drying system and one electric sublimation system
600 m² footprint; two loading/unloading workers and two technicians
The YH Series line is designed to replace multiple stand-alone coating and sublimation steps with one connected flow.
Up to 750 m² of decorated coil per hour.
Comparable production footprint for traditional coating flow.
A single connected line replaces many separate transfer steps.
Powder coating, curing and decorating are coordinated in one production sequence.
The finished coil can support wood, marble and other custom decorative effects.
A working speed of 10 m/min supports a planned daily output of approximately 15,000 m².
The integrated layout is designed to reduce labour, power, gas and space requirements.
